Battery Current & Voltage&Insulation Resistance Test Machine BMS Lithium & Lead Acid Battery Management Testing System

Name: Battery Current amp VoltageampInsulation Resistance Test Machine BMS Lithium amp Lead Acid Battery Management Testing System
Brand: HAIDA
Price: 1 USD

Wholesale Battery Current & Voltage&Insulation Resistance Test Machine BMS Lithium & Lead Acid Battery Management Testing System from china suppliers

Function 4 : Cell temperature accuracy test

Accuracy : 0.01

Voltage : /

Function 1 : OCV test

Application : Battery Testing

Protection Class : Ip56

warranty : 1

Capacity : 5V3A/5A/10A - 24S~240S-200A/400A/600A

Function 2 : Power-on power consumption test

Function 3 : Cell voltage accuracy test

Brand Name : HAIDA

Type : Testing Machine

MOQ : 1

Place of Origin : Guangdong, China

customized support : OEM, ODM

Function 5 : Total voltage comparison test

Function 7 : Insulation resistance accuracy comparison test

Function 8 : Balancing function test

power : /

Function 9 : Power supply voltage test

Function 6 : SOC comparison test

Contact Now

Product Description

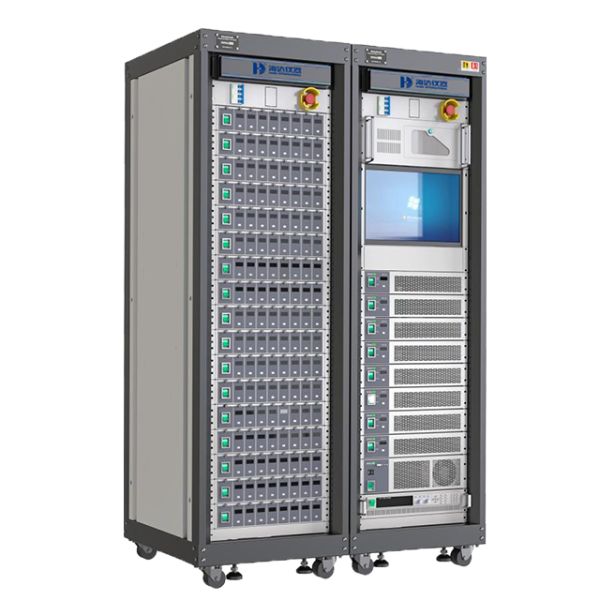

Battery Current & Voltage&Insulation Resistance Test Machine BMS Lithium & Lead Acid Battery Management Testing System

HD-H216

BMS Battery

Management Testing System

Applied in New Energy Vehicles, battery energy storage station, BMS battery management system research, parameter calibration, verification and production testing, and create a complete testing report.

Specification

Functions

Static current Balanced current test Insulation resistance Temp. precision

consumption test test and verification verification

Current precision Voltage precision National standard CANFD communication

verification verification charge signal simulation

Detailed Parameters

Models
HD-H216-BMS Capacity: 5V3A/5A/10A-24S~240S-200A/400A/600A
Pack Voltage
Items	Parameters	Accuracy	Resolution
Voltage Measurement	5-1000V	0.1% F.S	0.1V
Simulated battery output
Items	Parameters	Accuracy	Resolution
Voltage range	0.1-5V	0.01%R.D ± 0.02% F.S	0.1mV
uA current	1-5000uA	0.01%R.D ± 0.1% F.S	0.1uA
mA current	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Simulated battery sampling
Items	Parameters	Accuracy	Resolution
Voltage range	0.1-5V	0.01%R.D ± 0.02% F.S	0.1mV
uA current	1-5000uA	0.01%R.D ± 0.1% F.S	0.1uA
mA current	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Simulated battery's ability of absorbs current
Items	Parameters	Accuracy	Resolution
Current range	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Temperature simulation
Items	Parameters	Accuracy	Resolution
Temperature range	-50℃~+300℃	0.1%R.D ± 3% F.S	0.1℃
High precision constant current source
Items	Parameters	Accuracy	Resolution
Deliver & absorb current range	0~200A/400A/ 500A/600A	±0.05% F.S	1mA
DC high-voltage power
Items	Parameters	Accuracy	Resolution
Voltage range	0-1000V	0.1%RD±0.1%FS	0.1V
Current range	0-10A	0.1%RD±0.1%FS	1mA
High Power Resistor
Items	Parameters	Accuracy	Resolution
2 sets	5KΩ~10MΩ	0.1%RD±3%FS	5KΩ
Other parameters
DI/DO Module	Configure as required
AI/AO Module	Configure as required
CAN communication unit	4 sets
Functions
Basic function test	OCV test
		Power-on power consumption test
		Power loss power consumption test
		Cell voltage accuracy test
		Cell temperature accuracy test
		Total voltage comparison test
		SOC comparison test
		Insulation resistance accuracy comparison test
		Balancing function test
		Power supply voltage test
Alarm function test	Voltage/current/temperature/SOC alarm functions at all levels
Signal function test	Voltage sampling test
Signal function test		IO signal input and output test
Communication function	CANBUS / RS485 / RS232 / I2C / SUMBUS etc.
Note: For specific models and parameters, please refer to the corresponding technical specifications

Advantages

* With virtual battery design, not afraid of short circuit with a safer operation

* The virtual battery adopts plug-in design, and can be freely expanded

*Support various test functions, test high accuracy, 1 uA for self-consumption current accuracy

voltage accuracy is 1mV

*The software supports the modular structure tests, and supports production verification and R&D

data testing

*With strong compatibility to perfectly support various types of BMS protection board testing

*Support national standard charge signal simulation, CC, CC2, CP
